How to Mount Wildfire Sensors (Permanent & Temporary Methods)

Proper mounting of Silvanet Wildfire Sensors is critical to ensure accurate monitoring and reliable detection. This guide provides step-by-step instructions for both permanent and temporary mounting methods, helping your team deploy sensors safely and effectively. Following these methods will maximize sensor performance while minimizing impact on trees and the surrounding environment.

For the full list of tools and equipment, see: Tools and equipment needed for Silvanet site deployment

For detailed installation instructions, see: Wildfire Sensor Installation Guide

Dryad Silvanet Tutorial Deployment Video

🪵 Permanent Method: Mounting with Treenails

Steps:

1. Choose a healthy tree at the correct GPS location.

2. Clear a flat bark surface at 3 meters height.

3. Carefully remove a small portion of the bark with an axe at that location. Try not to excessively damage the tree.

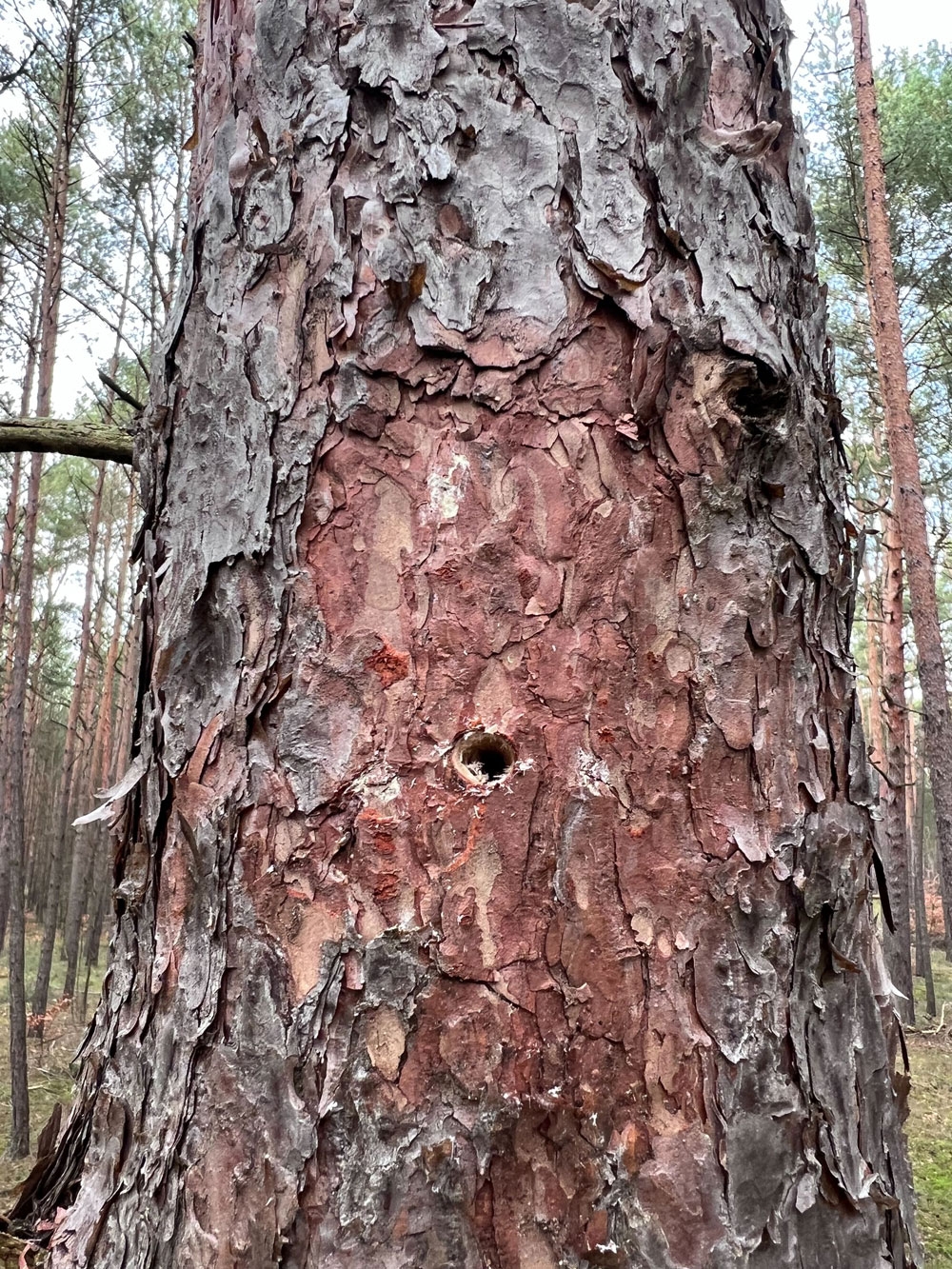

4. Drill a 6–7 cm deep, 10 mm hole.

   • For hardwoods, start with a smaller pilot bit.

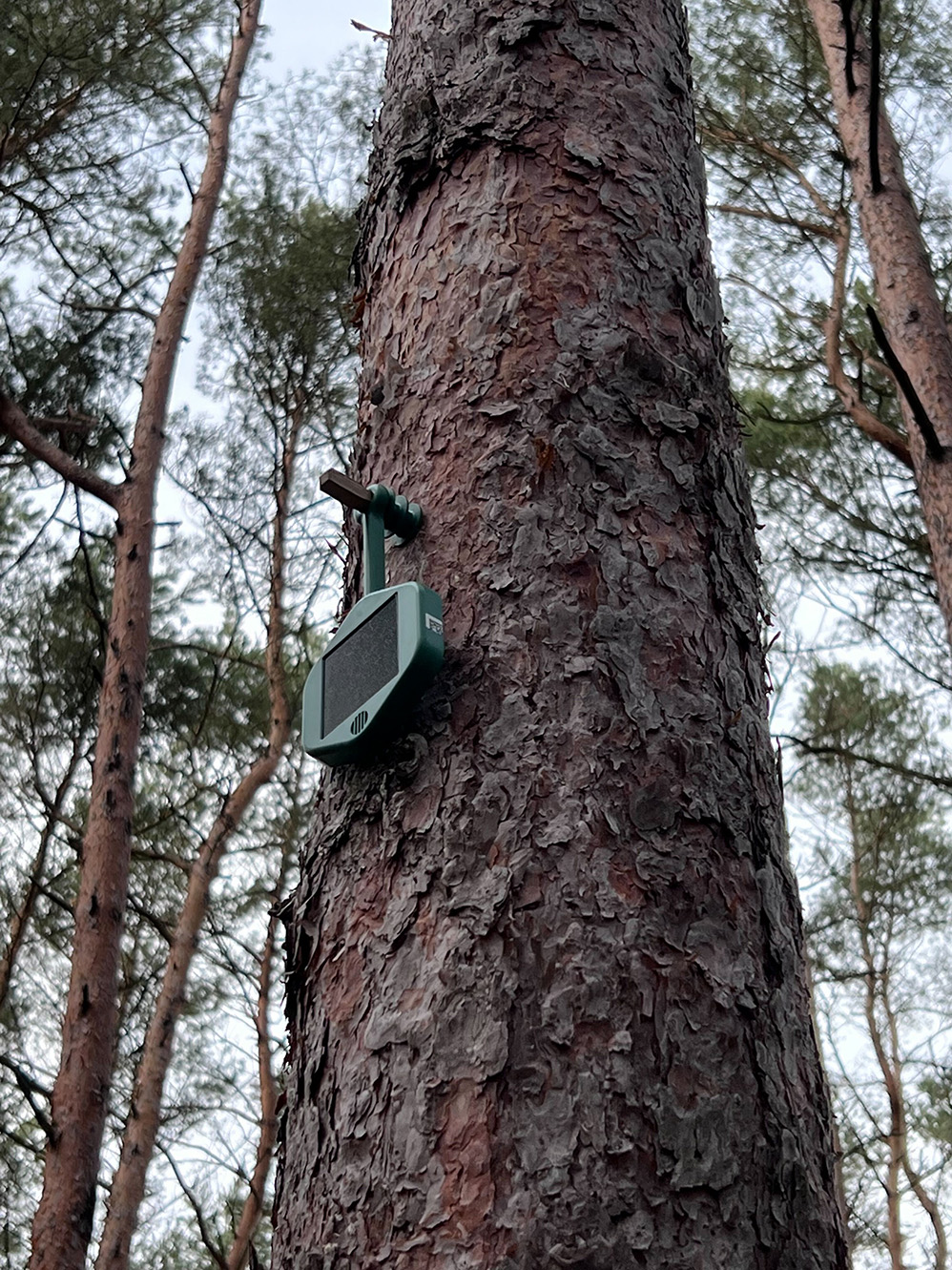

5. Insert the treenail through the sensor loop and spacer.

6. Carefully hammer the treenail into the hole.

7. Ensure the sensor hangs vertically and loosely.

Why the Spacer Matters:

• Keeps sensor dry & sap-free

• Ensures proper radio angle

• Allows vertical hanging

Temporary Method: Garden Wire

Use Case: Short-term demos or trials.

Steps:

1. Cut garden wire twice as long as the tree’s circumference

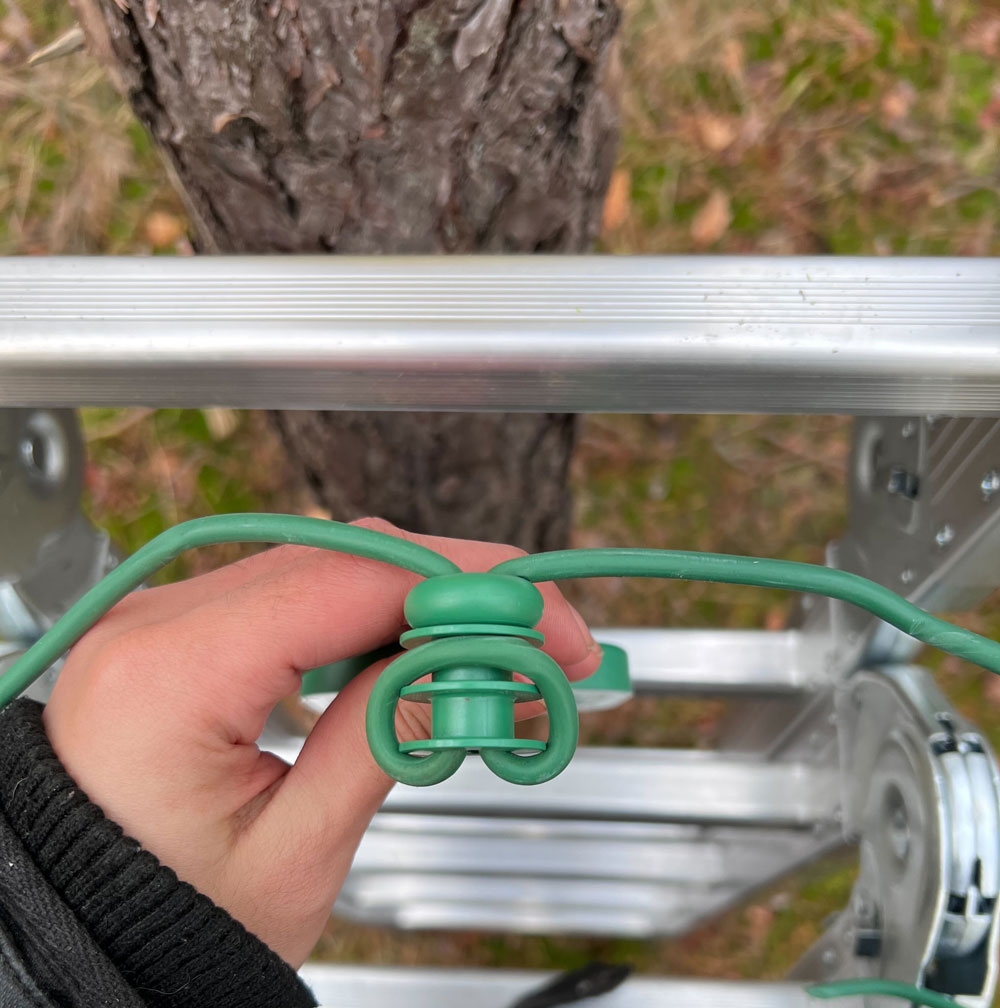

2. Feed it through the sensor and spacer.

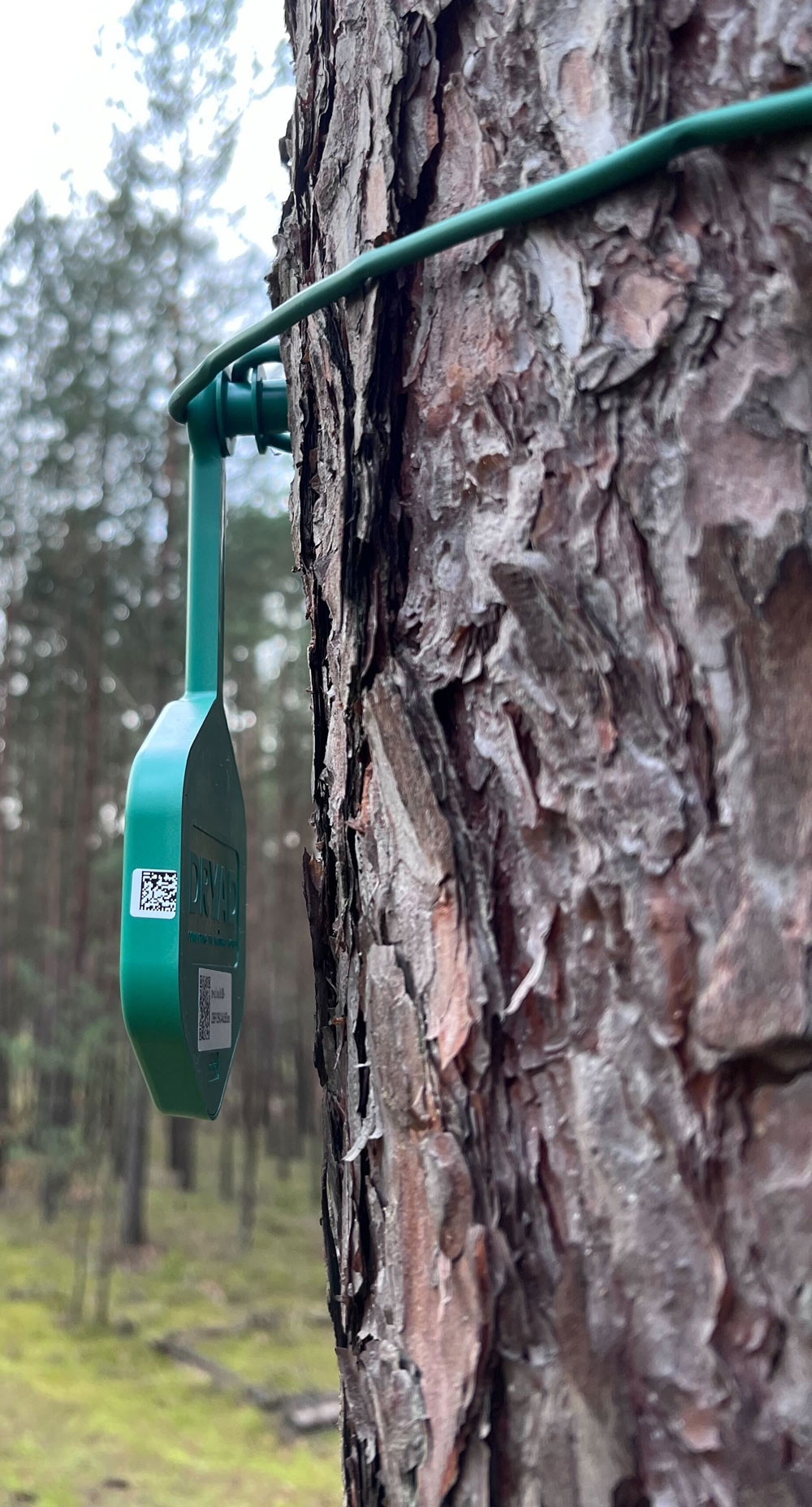

3. Loop it snugly around the tree and twist to secure.

4. Make sure the sensor hangs securely.

⚠️ Note: Garden wire can damage tree growth. Use only for temporary testing or mobile deployments.
