Status icons provide a quick visual overview of the current state of planned and deployed Silvanet devices of plans that have been Set to Deploy. These icons appear in both the Site Planning Tool and the Deployment App, ensuring consistent status feedback for users in the field and at the desktop.
Color-coded indicators make it easy to identify the status of Wildfire Sensors and Gateways at a glance.
Note: Planned and deployed status icons indicate the deployment state of each device only. They do not reflect device connectivity or operational status. For connectivity and live device status information, see Site Management App: Understanding Device Status Icons.
Border Gateway Icons
Site Planning Tool | ||
Map View |
List View |
Description |
| Planned: The location of the Border Gateway has been planned but the device has not yet been installed. | ||
| Deployed: The Border Gateway has been successfully installed and registered with the Silvanet network. | ||
Deployment App | ||
Map View |
List View |
Description |
|
|

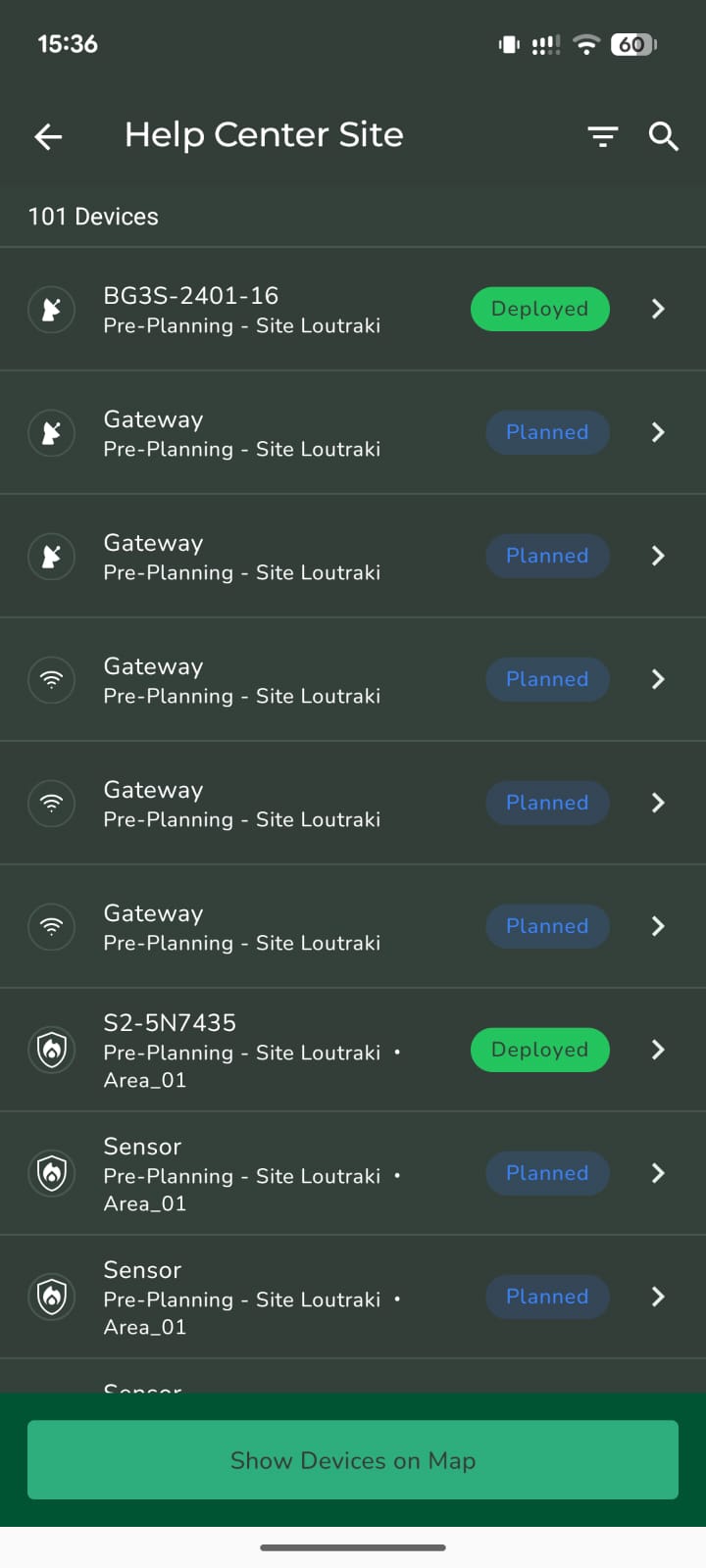

Planned: The location of the Border Gateway has been planned but the device has not yet been installed.
|
|
|
Deployed: The Border Gateway has been successfully installed and registered with the Silvanet network.
|
||
Mesh Gateway Icons
Site Planning Tool | ||
Map View |
List View |
Description |
| Planned: The location of the Mesh Gateway has been planned but the device has not yet been installed. | ||
| Deployed: The Mesh Gateway has been successfully installed and registered with the Silvanet network. | ||
Deployment App | ||
Map View |
List View |
Description |
|
Planned: The location of the Mesh Gateway has been planned but the device has not yet been installed.
|
||
|
Deployed: The Mesh Gateway has been successfully installed and registered with the Silvanet network.
|
||
Sensor Icons
Site Planning Tool | ||
Map View |
List View |
Description |
| Planned: The location of the Sensor has been planned but the device has not yet been installed. | ||
| Deployed: The Border Gateway has been successfully installed and registered with the Silvanet network. | ||
Deployment App Device List | ||
Map View |
List View |
Description |
|

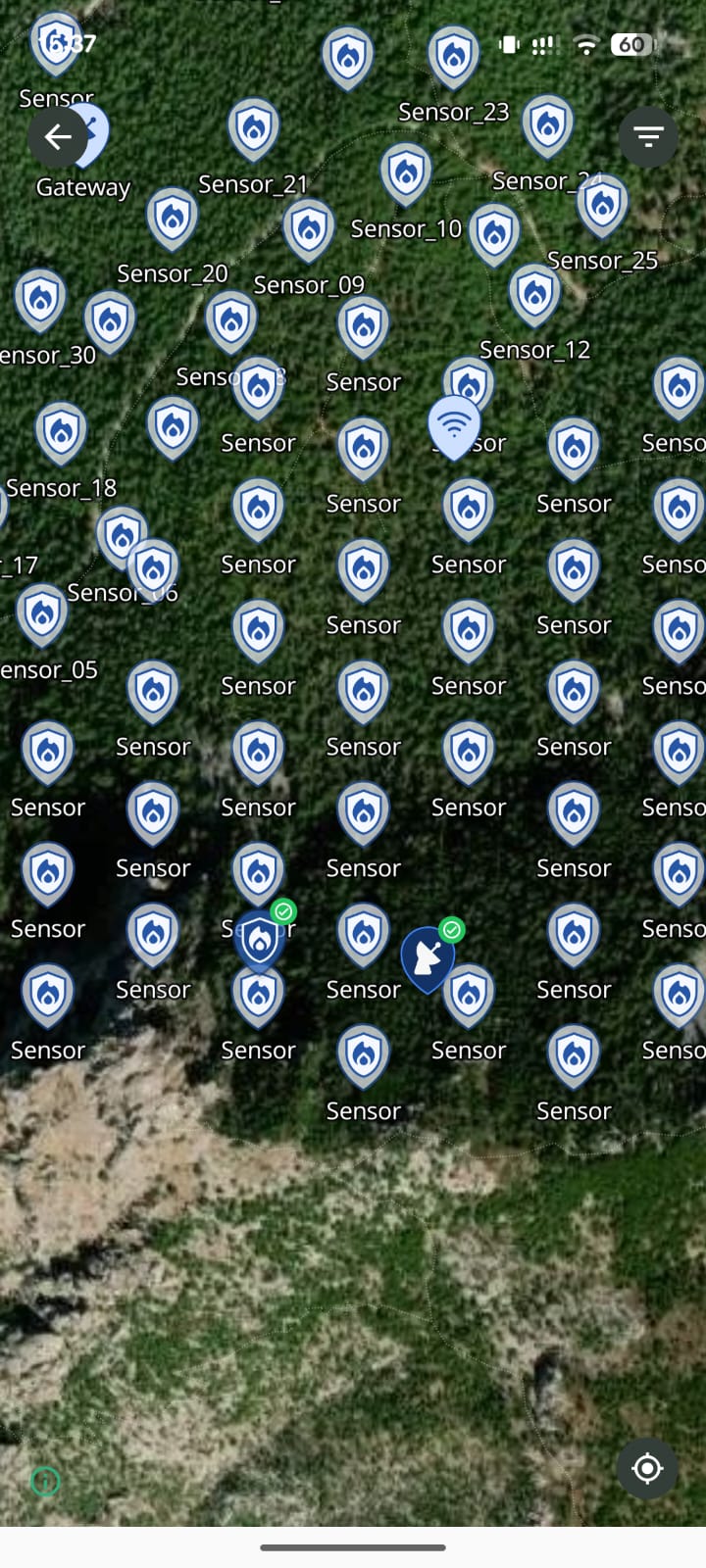

Planned: The location of the Sensor has been planned but the device has not yet been installed.
|
||
|
Deployed: The Border Gateway has been successfully installed and registered with the Silvanet network.
|
||
Note: The Silvanet Deployment App also provides additional device deployment status to assist field installation teams with connectivity testing. For full details on Deployment App device status, please see Silvanet Deployment App: Understanding Device Statuses.

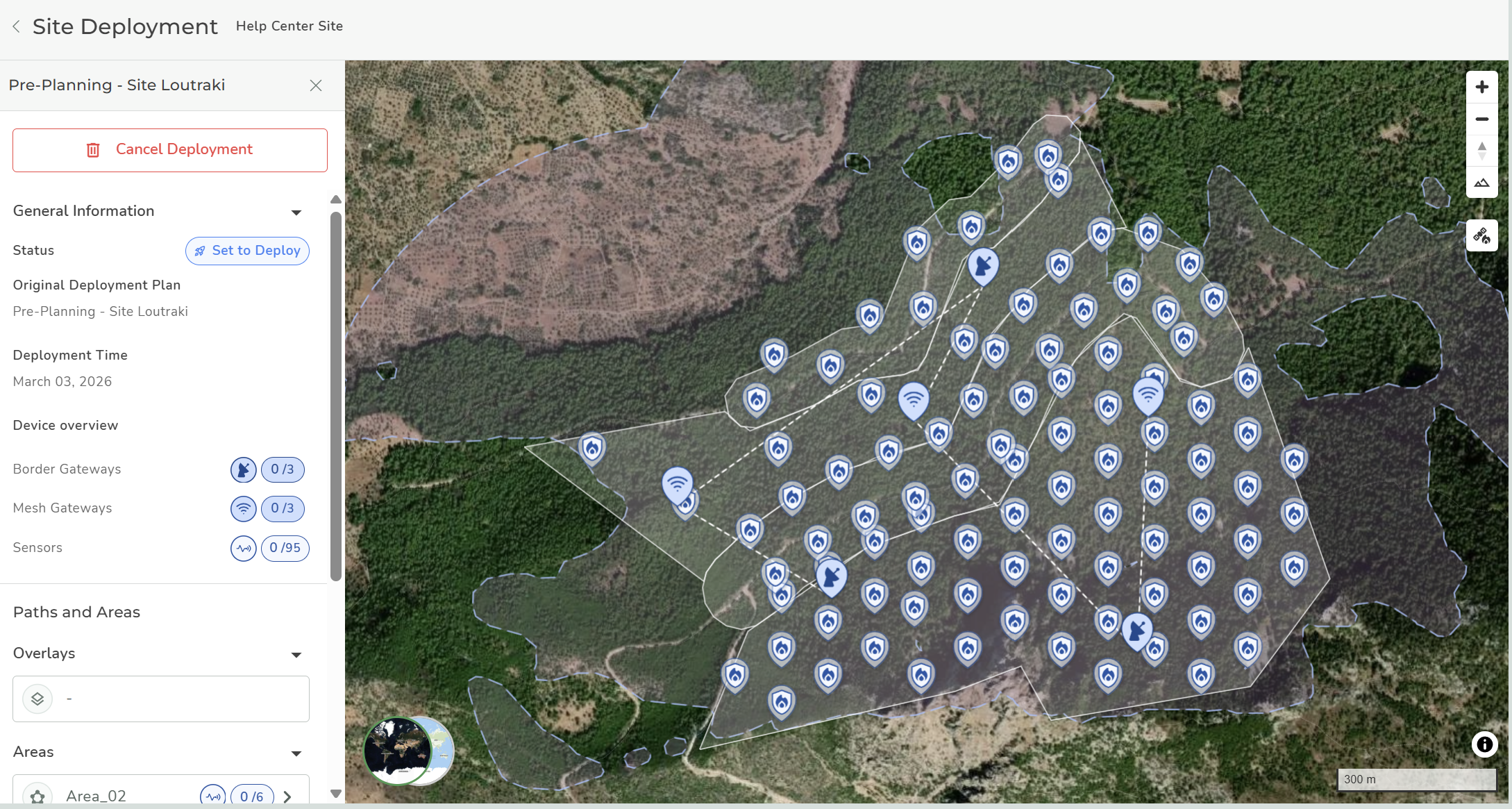

Where You’ll See Planned and Deployed Device Status Icons
You will see these status icons in both the Site Planning Tool and the Deployment App, where they serve different use cases.
Site Planning Tool – For monitoring planned and deployed devices from your desktop, and for planning extensions to your existing Silvanet network.
Deployment App – For field teams to monitor device status during installation and deployment.
Note: If you are deploying your site in offline mode, status icons in the Site Planning Tool will not update until mobile connectivity is restored and synchronization is complete. For more information, see How Does Deployment Data Sync When Deploying in Offline mode?

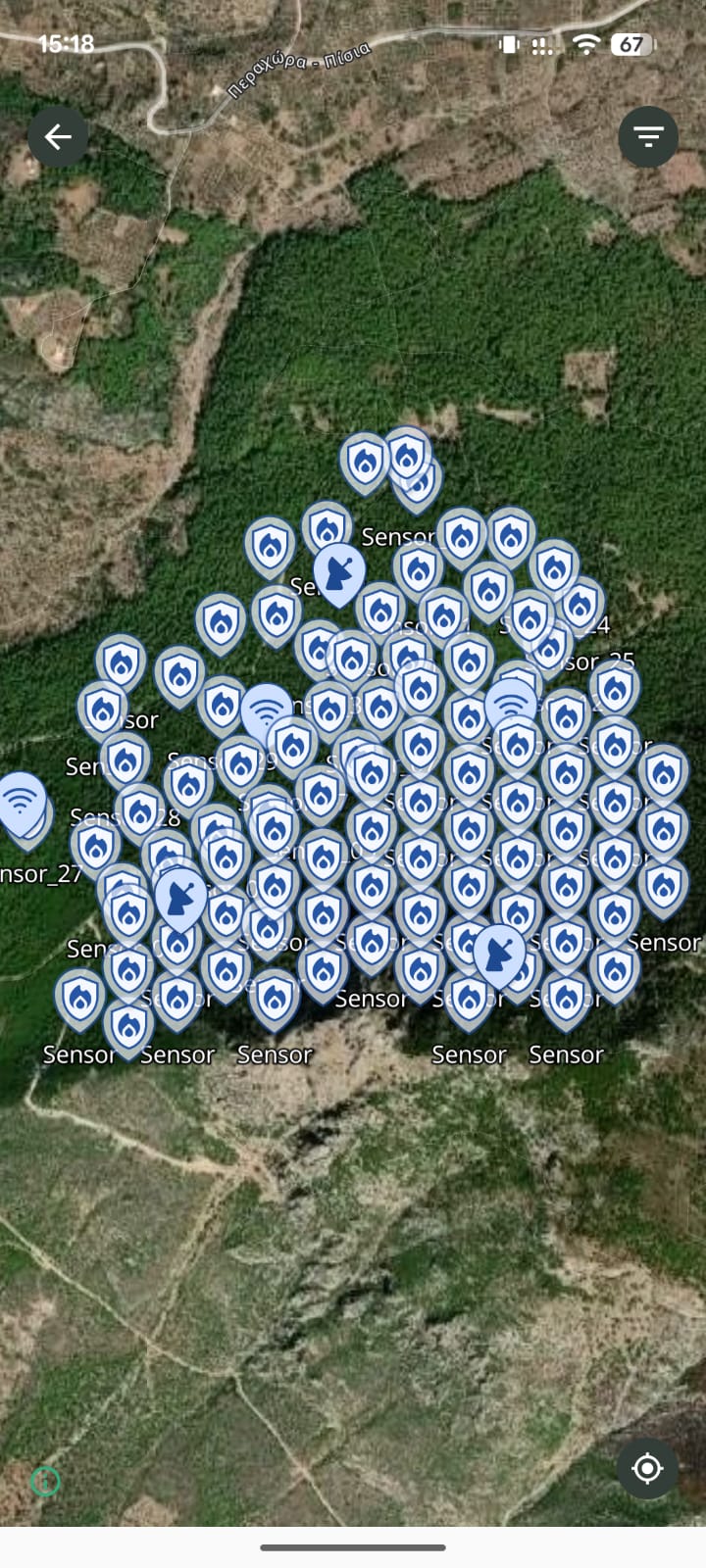

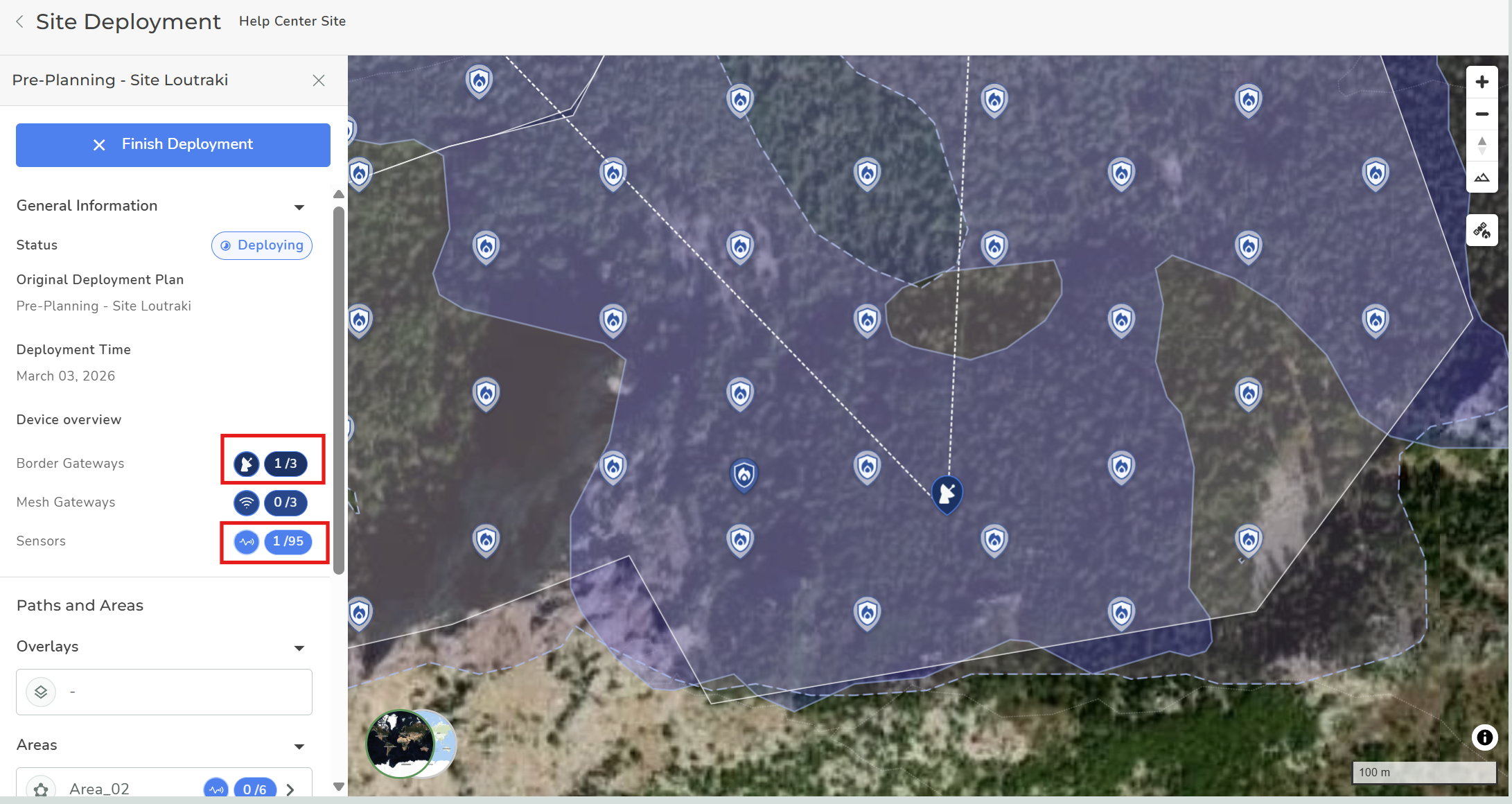

| Deployment App: Partially Deployed - This image shows a site where some devices have been installed while others are still pending. | |

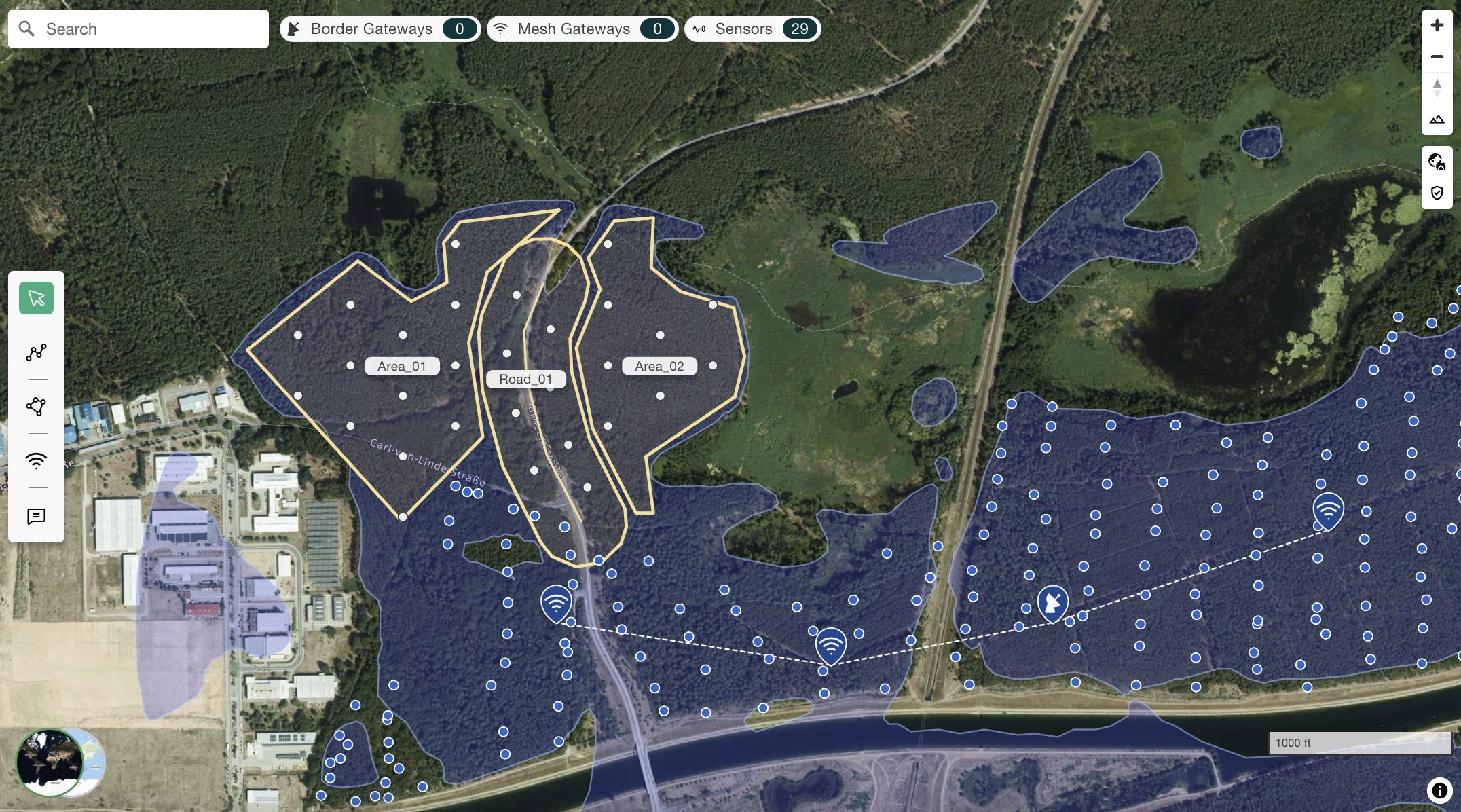

Note: For detailed guidance on extending your existing Silvanet network, please see Extending an Existing Deployment Using the Planning Tool
